3D
costs and time to market.
In the webinar, “Additive Manufac-
turing Process Simulation for First Time Right,” Bujik touts the advan- tages of simulation as part of a test- based approach to 3D metal printing.
“When something goes wrong as the part is built, the team must go back, perhaps redoing the initial design and performing all pre-pro- cessing again,” he says.
To minimize that costly and time- consuming situation, Bujik stresses that simulation occur “left of print.” That means prior to the printing process.
“Results of simulation can affect topology optimization,” he explains,
“so a feedback loop prior to printing can optimize materials, processes and structure, which hopefully gives you a first-time-right build and ideal part per- formance.”
Macroscale Simulation Offers Quick, Accurate Read
Simulation for AM can occur at three levels, according to Bujik: micro, meso and macro.
Micro simulation is highly detailed and delves deeply into microstructure. Due to cost and time, this process is best performed on small parts or small part sections.
“For full build or for larger parts, meso- or microscale simulation is a better approach,” he says. These simulation approaches are simplified and provide enough detail to address process and build concerns and greatly improve the chances of a first-time-right build.
Macroscale simulation, exploring a build in voxels, “is extremely fast, featuring tests to determine inherent strain param- eters,” Bujik offers. “Accurate part-distor- tion and residual-stress results, as well as inherent strain, can be gained with such simulation.”
To validate the Simufact macroscale

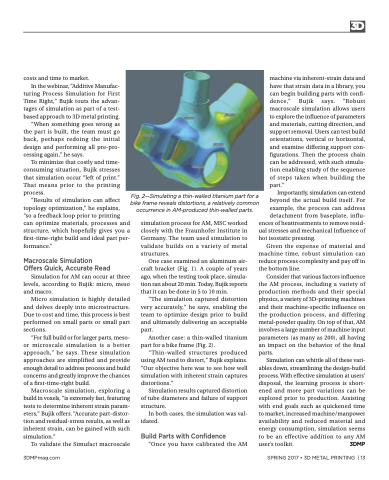

Fig. 2—Simulating a thin-walled titanium part for a bike frame reveals distortions, a relatively common occurrence in AM-produced thin-walled parts.
machine via inherent-strain data and have that strain data in a library, you can begin building parts with confi- dence,” Bujik says. “Robust macroscale simulation allows users to explore the influence of parameters and materials, cutting direction, and support removal. Users can test build orientations, vertical or horizontal, and examine differing support con- figurations. Then the process chain can be addressed, with such simula- tion enabling study of the sequence of steps taken when building the part.”
Importantly, simulation can extend beyond the actual build itself. For example, the process can address detachment from baseplate, influ-
3DMPmag.com
SPRING 2017 • 3D METAL PRINTING | 13
simulation process for AM, MSC worked closely with the Fraunhofer Institute in Germany. The team used simulation to validate builds on a variety of metal structures.
One case examined an aluminum air- craft bracket (Fig. 1). A couple of years ago, when the testing took place, simula- tion ran about 20 min. Today, Bujik reports thatitcanbedonein5to10min.
“The simulation captured distortion very accurately,” he says, enabling the team to optimize design prior to build and ultimately delivering an acceptable part.
Another case: a thin-walled titanium part for a bike frame (Fig. 2).
“Thin-walled structures produced using AM tend to distort,” Bujik explains. “Our objective here was to see how well simulation with inherent strain captures distortions.”
Simulation results captured distortion of tube diameters and failure of support structure.
In both cases, the simulation was val- idated.
Build Parts with Confidence
“Once you have calibrated the AM
ences of heattreatments to remove resid- ual stresses and mechanical Influence of hot isostatic pressing.
Given the expense of material and machine time, robust simulation can reduce process complexity and pay off in the bottom line.
Consider that various factors influence the AM process, including a variety of production methods and their special physics, a variety of 3D-printing machines and their machine-specific influence on the production process, and differing metal-powder quality. On top of that, AM involves a large number of machine input parameters (as many as 200), all having an impact on the behavior of the final parts.
Simulation can whittle all of these vari- ables down, streamlining the design-build process. With effective simulation at users’ disposal, the learning process is short- ened and more part variations can be explored prior to production. Assisting with end goals such as quickened time to market, increased machine/manpower availability and reduced material and energy consumption, simulation seems to be an effective addition to any AM user’s toolkit. 3DMP
